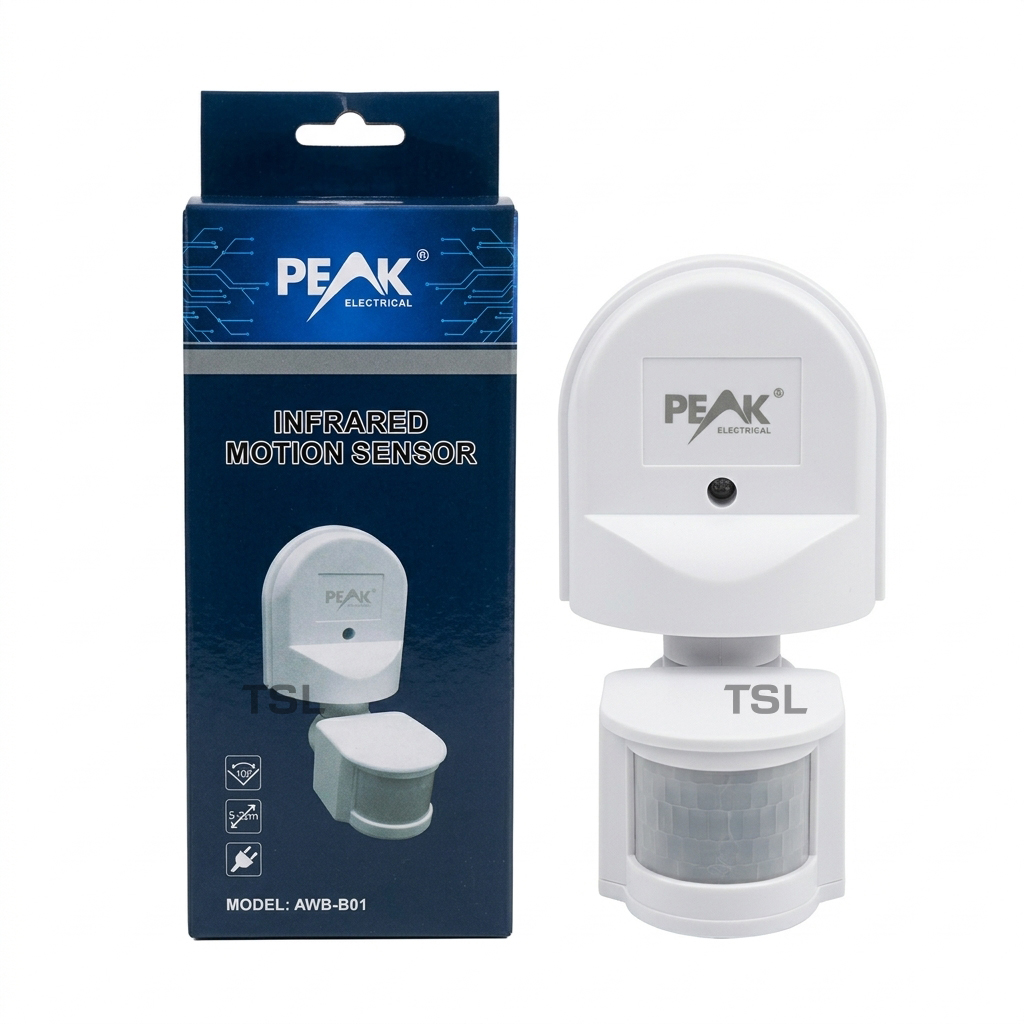

PEAK AWB-B01 Infrared Motion Sensor 180° Wall Mounted PIR Sensor 220-240V

The PEAK AWB-B01 Infrared Motion Sensor is a wall-mounted PIR motion sensor designed to automatically detect human movement and control connected lights or electrical appliances.

With a 180° detection angle and an adjustable 5–12 metre detection distance, the AWB-B01 is suitable for areas requiring automatic motion-activated switching. The time delay can be adjusted from 10 seconds to 7 minutes, while the ambient light sensitivity can be adjusted from 3 to 2000 Lux.

Product Specifications

• Brand: PEAK
• Model: AWB-B01
• Type: Infrared / PIR Motion Sensor
• Installation: Wall Mounted
• Detection Angle: 180°
• Detection Distance: 5–12m, adjustable
• Power Supply: 220–240V AC
• Frequency: 50/60Hz
• Time Delay: 10 seconds–7 minutes, adjustable
• Ambient Light: 3–2000 Lux, adjustable
• Recommended Installation Height: 1.8–2.5m
• MAX LOAD=1200W
